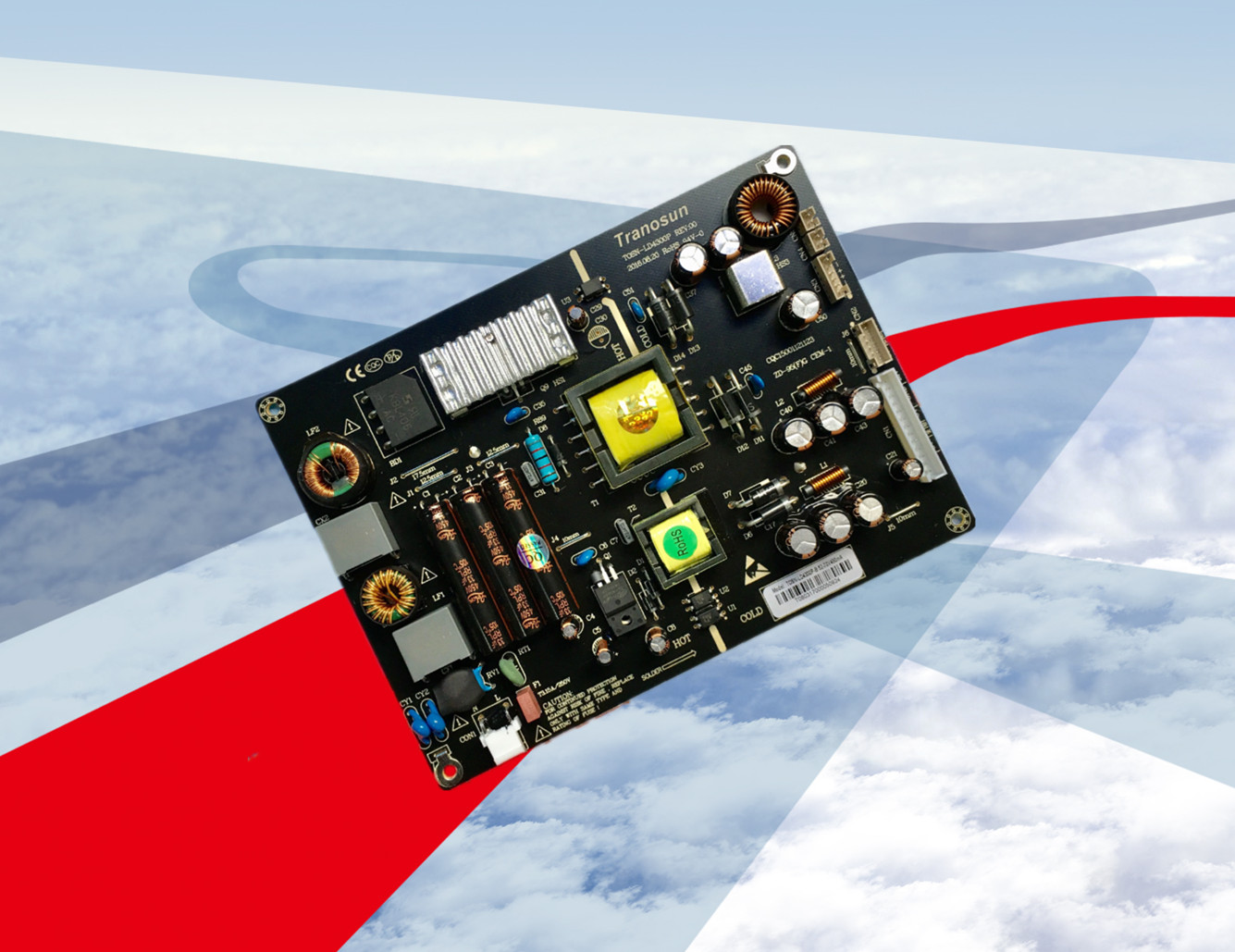

| 產品型號（Product model）： | TOSN-LD4300P-B (60W) | |||
| 產品參數（Product specifications） | ||||
| 輸入電壓（Input current）: | 100～240Vac(Range:90～264Vac). | |||
| 輸入電流（Input current）: | 0.8A Max. | |||
| 輸入頻率（Input frequency）: | 50/60Hz(Frequency range:47～63Hz). | |||
| 輸出電壓（Output voltage）: | +12V/+5V/+5VSB | |||
| 輸出電流（Output current）: | 2.0A /2.0A/0.5A(2.5A /2.5A/1.0A max) | |||
| LED恒流（LED constant current): | +40V～+70V 280mA(140mA*2) | |||
| +40V～+70V 400mA(200mA*2) | ||||
| +40V～+63V 480mA(240mA*2) | ||||
| +40V～+50V 600mA(300mA*2) | ||||
| 紋波及雜訊（Ripple and noise）: | 120mV max | |||
| 空載損耗功率:（No load power consumption） | ≦0.5W | |||
| 耐壓測試(Hi-Pot test): | 3000 VAC/1min/5mA | |||
| 漏電流(leakage current): | 0.25mA max.240VAC/ 50Hz | |||
|
電壓調整率/負載調整率:
(VoltageRegulation/ Load Regulation)
|
±5% | |||
| 轉換效率(Conversion Efficiency): | ﹥85% | |||
| 功能(Function)： | 具有過流,過壓,過溫,短路等保護功能 | |||
| 工作溫度(Operation temperature): | -25℃ to +55℃. | |||
| 相對濕度(Relative Humidity): | 10～90%RH | |||
| 安規標準(Safty Regulation Standard): | 符合UL/EN60950/60065/GB4943 | |||
| 電磁兼容標準(EMC): | 符合EN55032 & EN55024 Class B , GB13837-2012 , GB9254-2008, IEC/EN 61000-3-2:2014 , GB17625.1-2012 | |||
| 外形尺寸（Dimensions）： | (L)180*(M)130*(H)15 mm | |||
| 重量（Weight）： | 200g | |||
| Output Voltage | Load Regulation | Min Load | Rate Load | Max current |
| 輸出電壓 | 負載調整率 | 最小負載 | 標稱負載 | 最大負載 |
| +V1(+5VSB) | ±5% | 0.02A | 0.5A | 1.0A |
| +V2(+5V) | ±5% | 0.1A | 2.0A | 2.5A |
| +V3(+12V) | ±10% | 0.1A | 2.0A | 2.5A |
|
LED
Output Voltage range
|
LED
Output standard voltage
|
LED
Rated current
|
LED
Rated output Power
|
|
| LED 輸出電壓范圍 | LED 輸出標準電壓 | LED 額定電流 | LED 額定功率 | |
| +V2(+40V～70V) | +40V～+70V --------＞ | 280mA(140mA*2) |
＜30W
恒流總功率不能超過
30W
|
|
| +40V～+70V --------＞ | 400mA(200mA*2) | |||
| +40V～+63V --------＞ | 480mA (240mA*2) | |||
| +40V～+50V --------＞ | 600mA (300mA*2) | |||
TOSN-LD4300P-B
